Greenhouse Plastic Roll Sizes and Specifications: Width, Thickness and Length Guide
Choosing the right greenhouse plastic roll is not only a matter of finding a roll that looks wide enough to cover the frame. For commercial greenhouses, hoop houses, nursery tunnels and crop protection structures, the correct roll size depends on greenhouse span, roll width, roll length, film thickness, fastening method and expected outdoor service life.
For many farms and greenhouse projects, a UV-stabilized polyethylene greenhouse film around 6 mil, or about 150 microns, is a practical starting point. However, the final specification should still be confirmed according to greenhouse width, arch height, climate, crop type, installation method, function additives and roll packing requirements.
Contents
- Quick Answer: What Greenhouse Plastic Roll Size Do You Need?
- What Does Greenhouse Plastic Roll Size Mean?
- Common Greenhouse Plastic Roll Widths
- Greenhouse Plastic Roll Thickness: Microns and Mil Compared
- How to Measure Greenhouse Plastic Roll Width
- How to Calculate Greenhouse Plastic Roll Length
- Width, Length and Thickness Selection Table
- Custom Greenhouse Plastic Roll Options
- Common Mistakes When Choosing Greenhouse Plastic Rolls
- What to Confirm Before Ordering
- Frequently Asked Questions
- References
Quick Answer: What Greenhouse Plastic Roll Size Do You Need?
For most fixed greenhouse structures, the safest starting point is to choose a UV-stabilized, greenhouse-grade polyethylene film with enough width to cover the frame from one fixing side to the other, plus extra allowance for fastening. The roll length should cover the full greenhouse length, with additional material for end pulling, trimming and installation handling.
A typical commercial greenhouse plastic roll specification may look like this:
| Item | Common Starting Point | Why It Matters |
|---|---|---|
| Material | PE / LDPE / LLDPE greenhouse film | Greenhouse-grade film is different from ordinary construction plastic sheeting. |
| Thickness | 150 micron / about 6 mil | Common for many multi-season greenhouse and hoop house projects. |
| Width | Based on greenhouse span and arch curve | Do not calculate only from the ground width of the structure. |
| Length | Greenhouse length plus allowance | Extra material may be needed for pulling, trimming, end fixing and repair pieces. |
| Function | UV, anti-drip, anti-fog, thermal or custom | Functional additives should match climate, crop and service-life requirements. |
| Packing | Roll packing, woven bag or pallet packing | Important for bulk orders, export shipment, unloading and jobsite handling. |

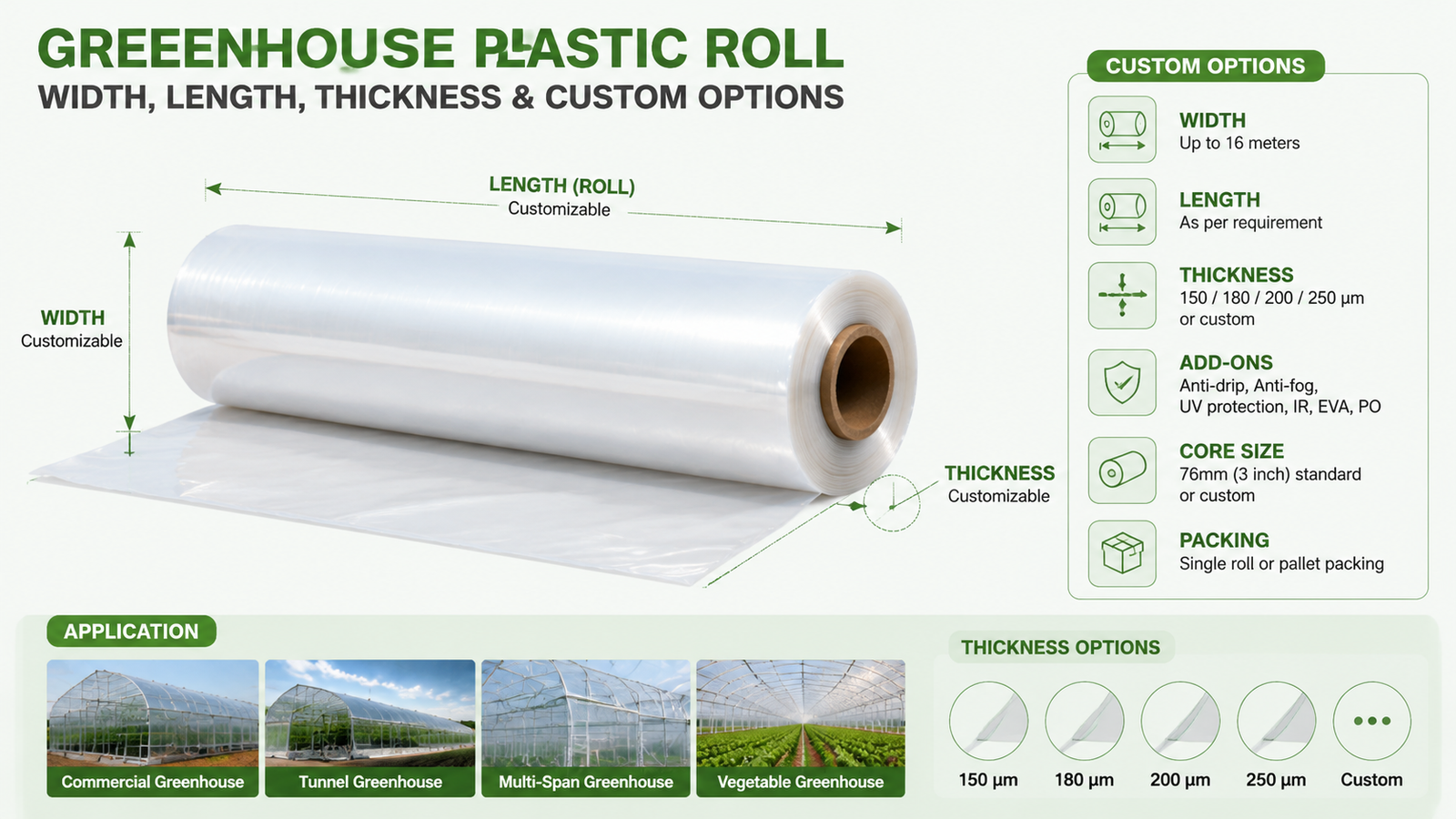

What Does Greenhouse Plastic Roll Size Mean?
When people talk about greenhouse plastic roll size, they may mean several different things. A complete specification normally includes roll width, roll length, thickness, material, function options, roll weight and packing method. These details work together. A roll that has the correct thickness but the wrong width may still fail during installation. A roll that is wide enough but has no UV stabilization may age too quickly outdoors.
| Specification | Meaning | Ordering Note |
|---|---|---|
| Roll width | The film width before installation, selected according to greenhouse span and arch shape. | Measure over the frame curve and add fixing allowance. |
| Roll length | The continuous roll length supplied for covering the greenhouse structure. | Allow extra length for pulling, trimming and end sections. |
| Thickness | Film gauge, usually expressed in microns or mil. | 150 micron / 6 mil is a common commercial starting point. |
| Material | PE, LDPE, LLDPE, EVA, PO or other formulation options. | Material affects clarity, strength, flexibility and service life. |
| Function | UV resistance, anti-drip, anti-fog, thermal retention or other additives. | Select according to crop, climate and greenhouse environment. |
| Packing method | Roll, woven bag, carton, pallet or custom export packing. | Confirm packing before bulk order and container loading. |
Common Greenhouse Plastic Roll Widths
Greenhouse plastic roll widths vary according to greenhouse type, production capability and project requirement. Small tunnels may use narrow rolls, while commercial greenhouses may require wider custom rolls or multiple film sections. For curved greenhouse frames, the required width is usually larger than the ground width because the film must travel over the arch before being fixed at both sides.
| Roll Width Range | Typical Use | Practical Notes |
|---|---|---|
| 2-4 m | Low tunnels, small crop covers, temporary protection | Often used for seasonal or short-span applications. |
| 5-8 m | Small hoop houses, nursery tunnels, vegetable tunnels | Useful for small to medium greenhouse structures. |
| 9-12 m | Commercial hoop houses and wider tunnels | Requires careful measurement over the arch and extra allowance at both sides. |
| 13-16 m | Larger greenhouse spans | Handling, roll weight and installation crew become more important. |
| 17-20 m or custom | Large agricultural or commercial projects | Confirm production width, roll weight, packaging and transport before ordering. |

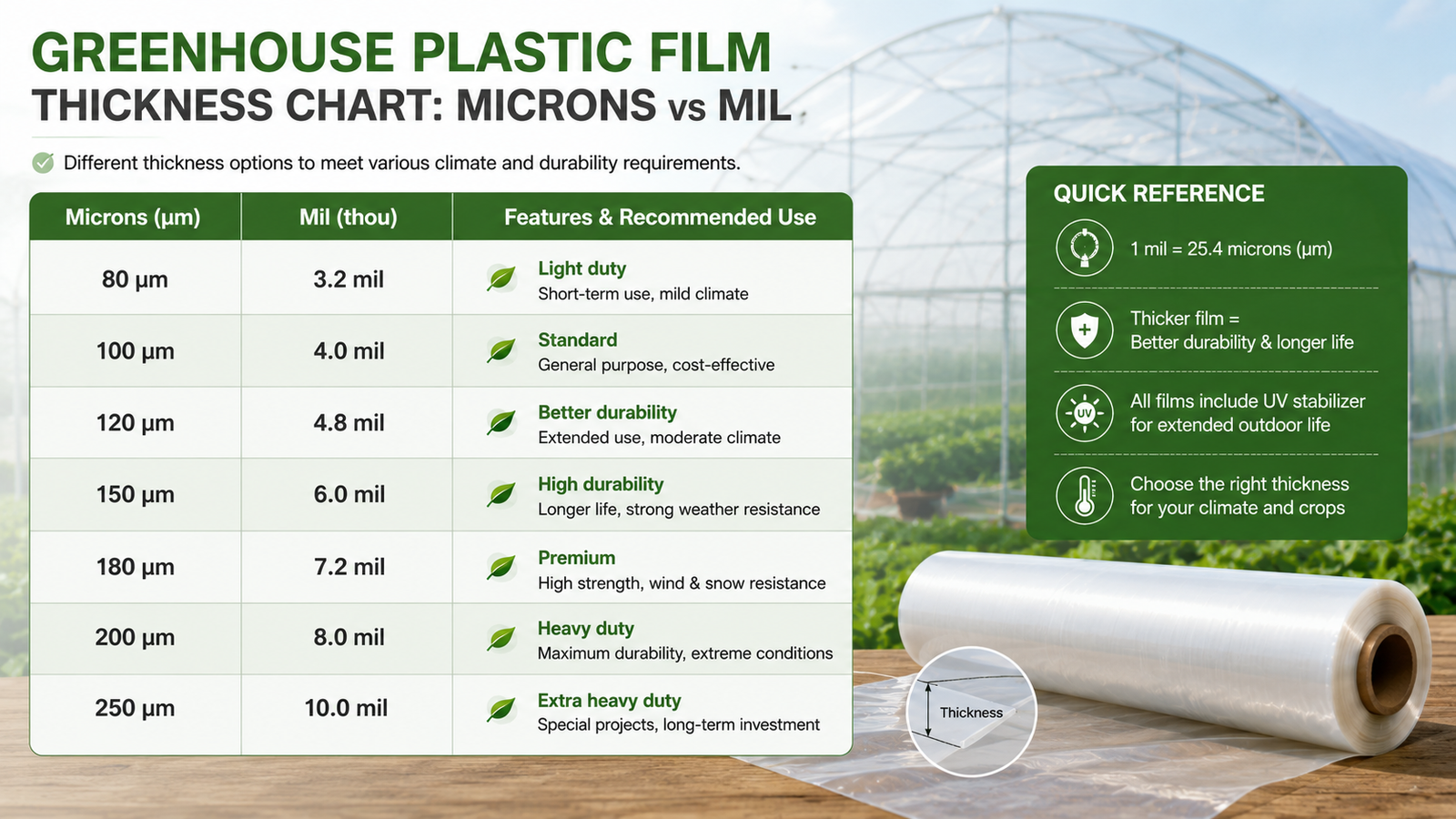

Greenhouse Plastic Roll Thickness: Microns and Mil Compared
Thickness affects durability, handling, puncture resistance, tear resistance, cost and service life. However, thickness alone does not define quality. A properly formulated 150 micron greenhouse film with UV stabilizers can perform better than a thicker ordinary plastic sheet without outdoor stabilization.
| Thickness | Approx. Mil Equivalent | Common Use | Main Advantage | Main Limitation |
|---|---|---|---|---|
| 80 micron | 3.1 mil | Temporary covers, short-season use | Light weight and low cost | Limited durability |
| 100 micron | 3.9 mil | Low tunnels, seasonal crop protection | Easy handling | Not ideal for long outdoor use |
| 150 micron | 5.9 mil | Commercial greenhouses, hoop houses, crop tunnels | Balanced strength, cost and light transmission | Still depends on UV formulation and installation quality |
| 180 micron | 7.1 mil | Longer service life or tougher environments | Better mechanical strength | Higher cost and roll weight |
| 200 micron | 7.9 mil | Projects requiring more durability | Higher puncture and tear resistance | May be harder to handle |
| 250 micron | 9.8 mil | Heavy-duty or special covering systems | Stronger film body | May reduce flexibility and increase cost |
For many greenhouse projects, 150 micron or approximately 6 mil is a practical starting point. For windy areas, long service life, rough handling or more demanding greenhouse structures, 180-250 micron film may be considered. For a deeper explanation of film gauge, read our greenhouse plastic thickness guide.

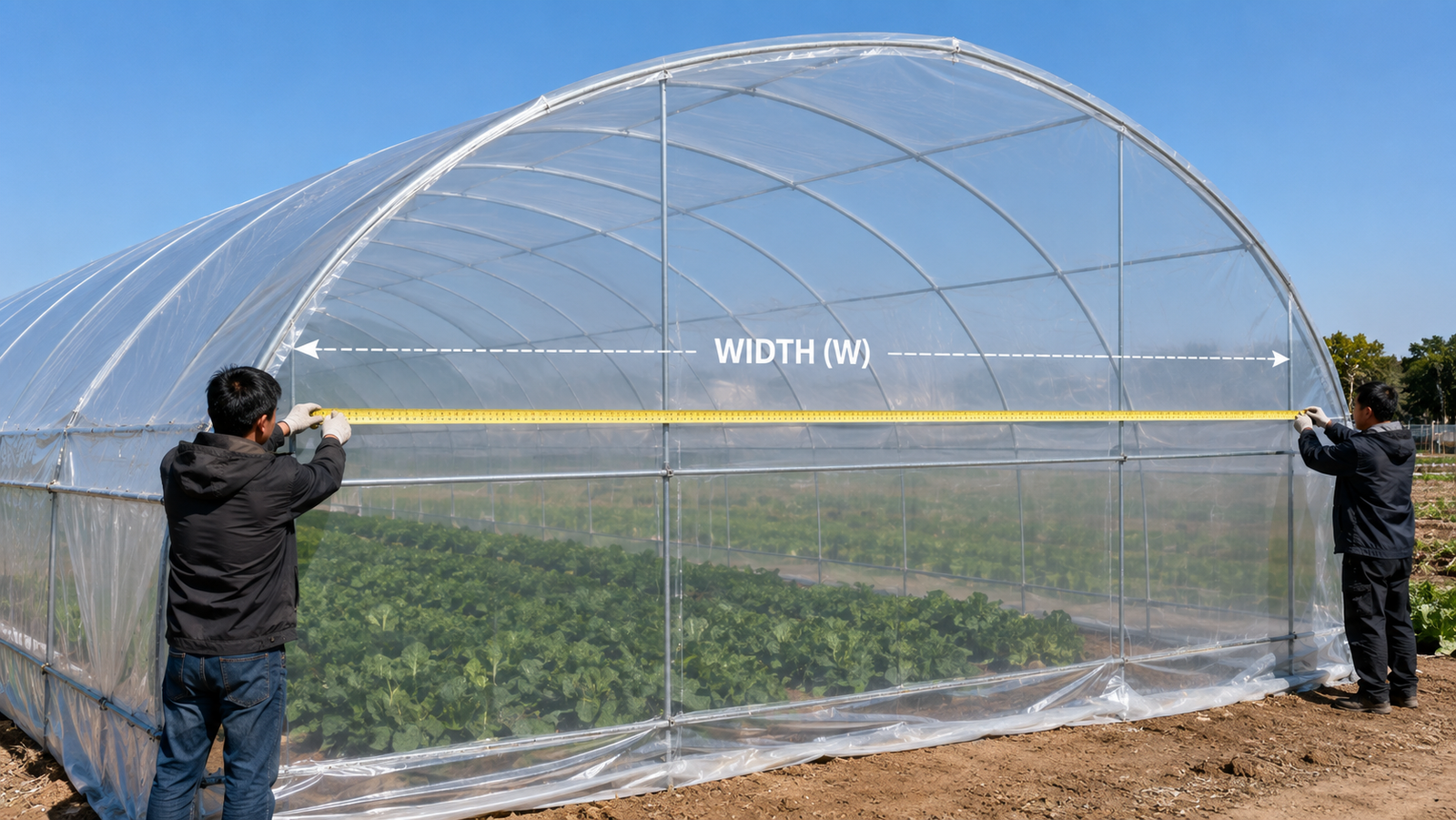

How to Measure Greenhouse Plastic Roll Width
Measuring greenhouse film width is one of the most common sources of ordering mistakes. The required roll width should not be calculated only from the straight ground width of the greenhouse. For hoop houses and curved structures, the film must cover the full arch curve.
A practical measurement method is:
- Measure from one fixing point on one side of the greenhouse.
- Follow the curve over the roof to the fixing point on the opposite side.
- Add extra allowance for locking channel, wiggle wire, buried edge, batten, roll-up side or trimming.
- If the greenhouse has side curtains or roll-up ventilation, measure those sections separately.
- If the structure uses a double-layer inflated cover, calculate the film needed for both layers.

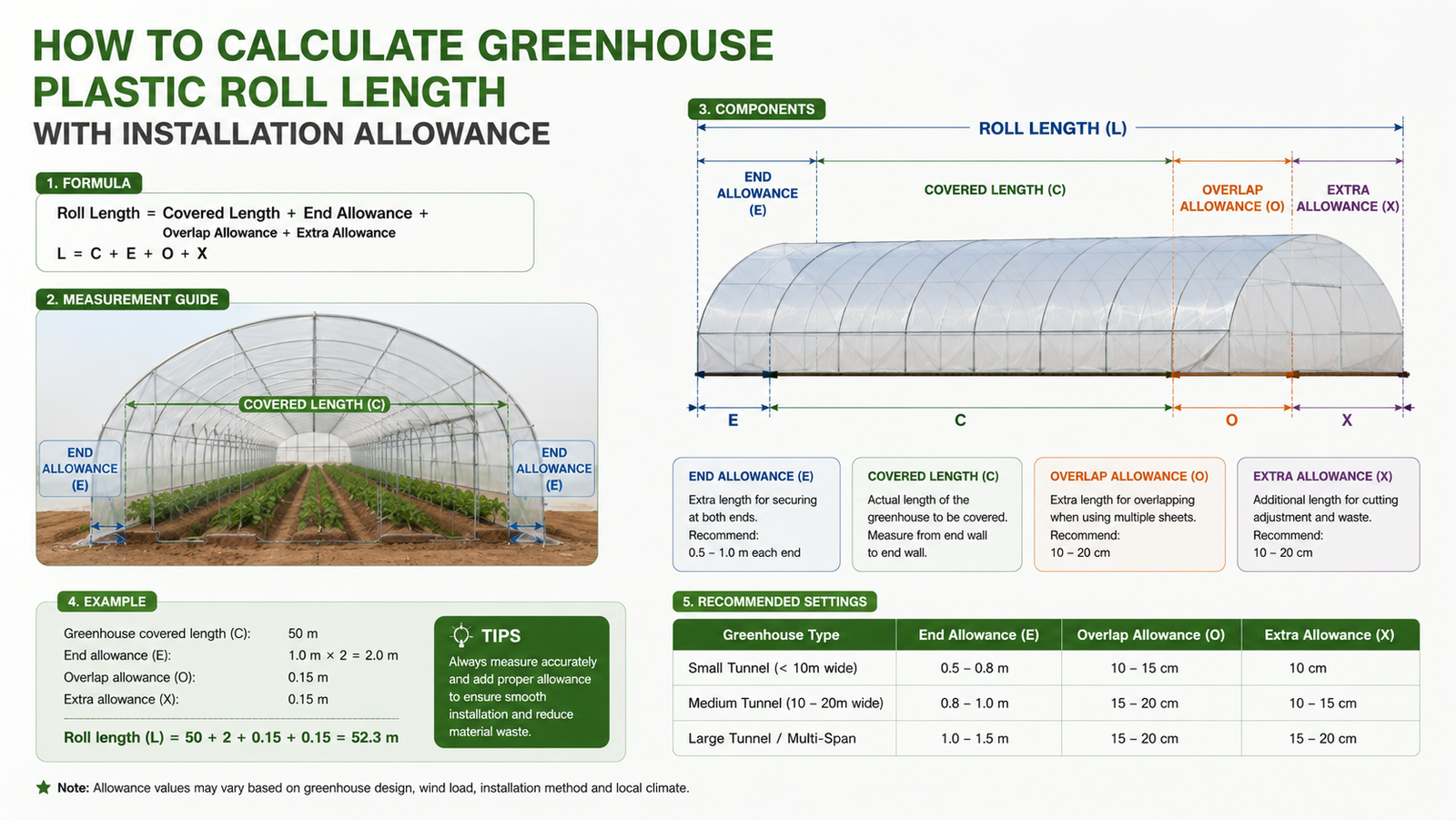

How to Calculate Greenhouse Plastic Roll Length
Greenhouse plastic roll length is usually easier to calculate than width, but it still needs allowance. A roll that exactly matches the greenhouse length may be difficult to pull, align and fasten.
A simple calculation is:
For a 50 m greenhouse, the order length may need to be slightly longer than 50 m depending on how the film is pulled, fixed and trimmed. If the roll will also be used for end walls, doors, side ventilation areas or repair pieces, those sections should be calculated separately.
Width, Length and Thickness Selection Table
The best greenhouse plastic roll size depends on structure type and application. The table below gives a practical starting point for discussion before final quotation.
| Greenhouse Situation | Suggested Starting Thickness | Width Decision | Length Decision | Check Before Ordering |
|---|---|---|---|---|
| Low tunnel or temporary crop cover | 80-100 micron | Narrow roll based on bed width | Based on row length | Seasonal use, low cost and easy handling |
| Small hoop house | 100-150 micron | Measure over arch plus fixing allowance | Full structure length plus trimming | Wind exposure, fixing method and crop season |
| Commercial hoop house | 150 micron | Custom width may be needed | Full greenhouse length plus end allowance | UV grade, anti-drip function, roll weight and packing |
| Multi-season greenhouse | 150-200 micron | Confirm roof span and side fixing details | Confirm roll length and roll weight | Expected service life and installation crew |
| Windy or exposed area | 180-250 micron | Wider allowance and stronger fastening may be needed | Avoid overly heavy rolls that are hard to install | Fastening method, frame contact points and abrasion risk |
| Double-layer inflated system | Usually two film layers | Calculate each layer separately | Confirm blower and air gap arrangement | Film thickness, inflation system and sealing details |
If you are still comparing film, reinforced plastic and rigid panels, read our guide to the best plastic for a greenhouse.

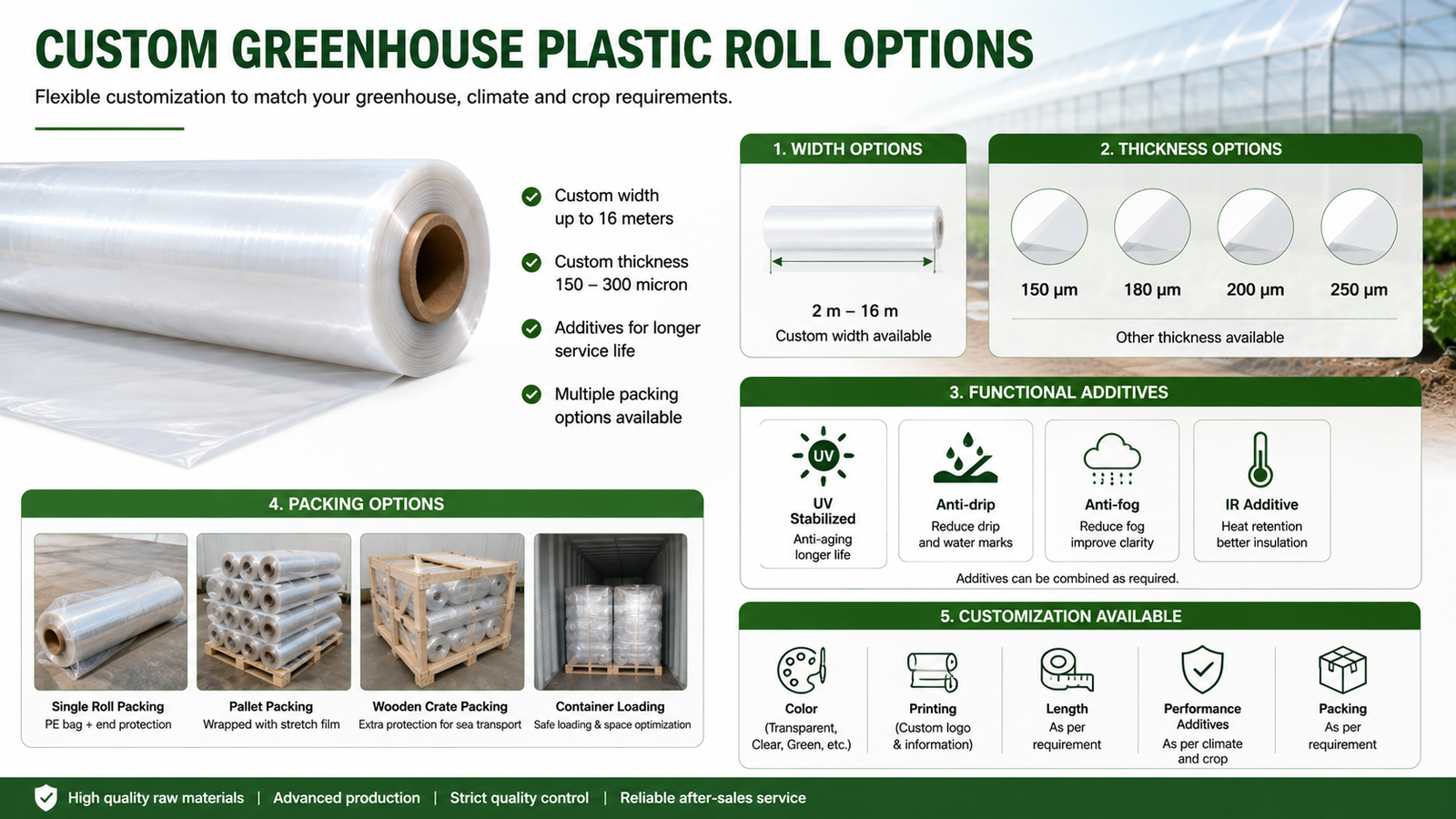

Custom Greenhouse Plastic Roll Options
A custom greenhouse plastic roll may include more than only width and length. For farms, greenhouse builders and distributors, the most useful specification usually includes material, thickness, additives, color, packing and shipment requirements.
| Option | What It Affects |
|---|---|
| Width | Fit to greenhouse span, tunnel structure or crop covering layout. |
| Length | Roll handling, cutting plan, greenhouse length and packing weight. |
| Thickness | Durability, puncture resistance, tear resistance and service life. |
| Material | Flexibility, clarity, strength, sealing and outdoor performance. |
| UV stabilizer | Resistance to sunlight and outdoor aging. |
| Anti-drip | Helps reduce water droplets falling onto crops. |
| Anti-fog | Helps improve visibility and reduce fogging in humid conditions. |
| Packing | Roll packing, woven bag, pallet packing or custom export packing. |
For greenhouse use, UV resistance is usually essential. Anti-drip and anti-fog options can be useful in humid environments where condensation affects crop quality, light transmission and working visibility. For more technical selection criteria, see our guide to greenhouse film quality factors.

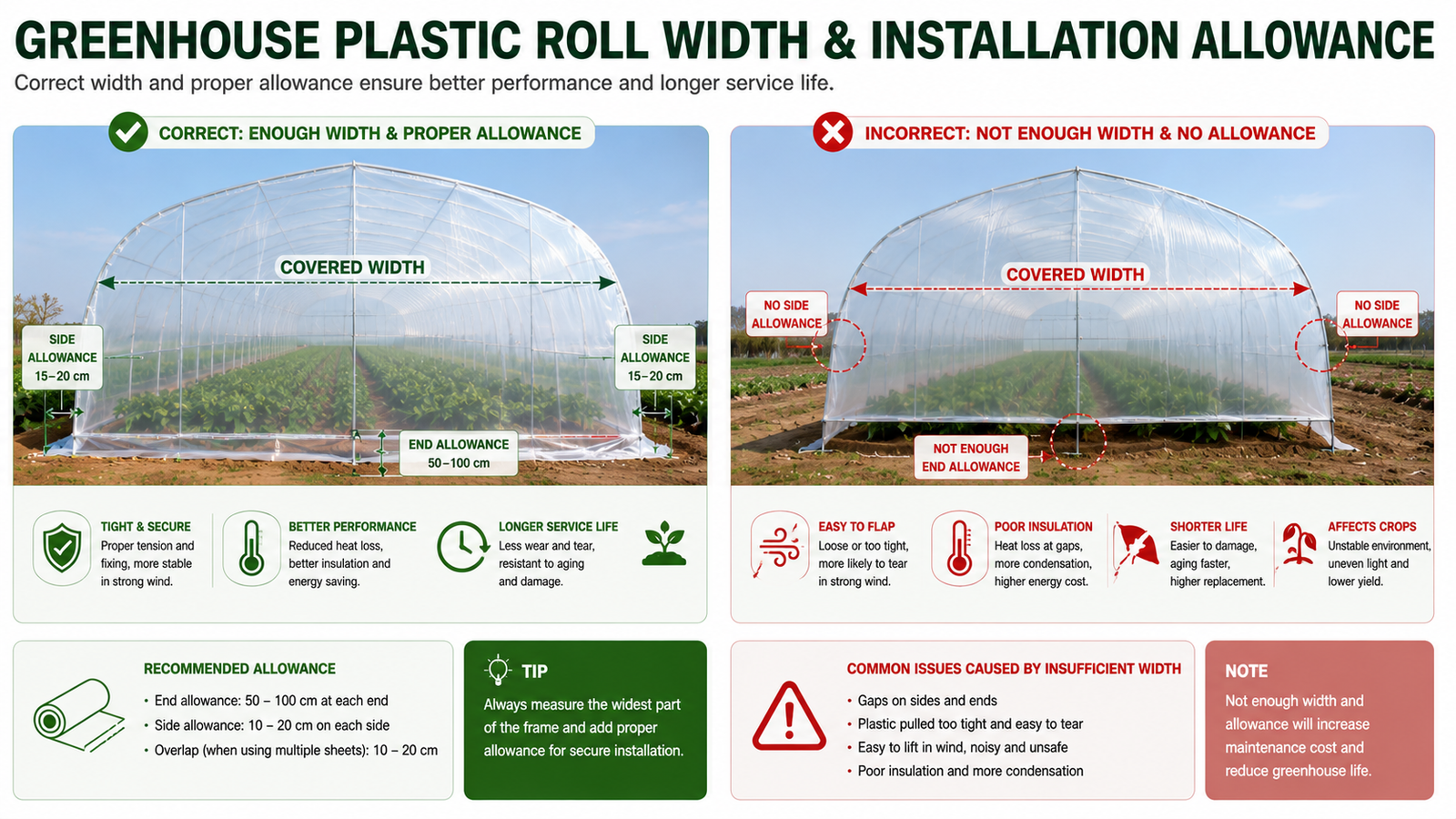

Common Mistakes When Choosing Greenhouse Plastic Rolls
Many greenhouse film problems start before installation. The wrong roll size or specification can lead to difficult installation, early tearing, poor tension or short service life.
| Mistake | Why It Causes Problems |
|---|---|
| Measuring only ground width | Curved frames require film to cover the arch, not just the base width. |
| No fixing allowance | The film may be too short for locking channel, batten, buried edge or roll-up sides. |
| Choosing ordinary plastic sheeting | Non-greenhouse plastic may lack UV stabilization and proper mechanical strength. |
| Looking only at thickness | UV formulation, additives, raw material and installation quality also affect service life. |
| Ignoring roll weight | Very wide or thick rolls can be difficult to unload, move and install. |
| Forgetting side walls or end walls | Extra film may be needed for doors, vents, side curtains and repairs. |
A correctly sized film is easier to install, tension and maintain. For installation details, read our greenhouse plastic installation guide.

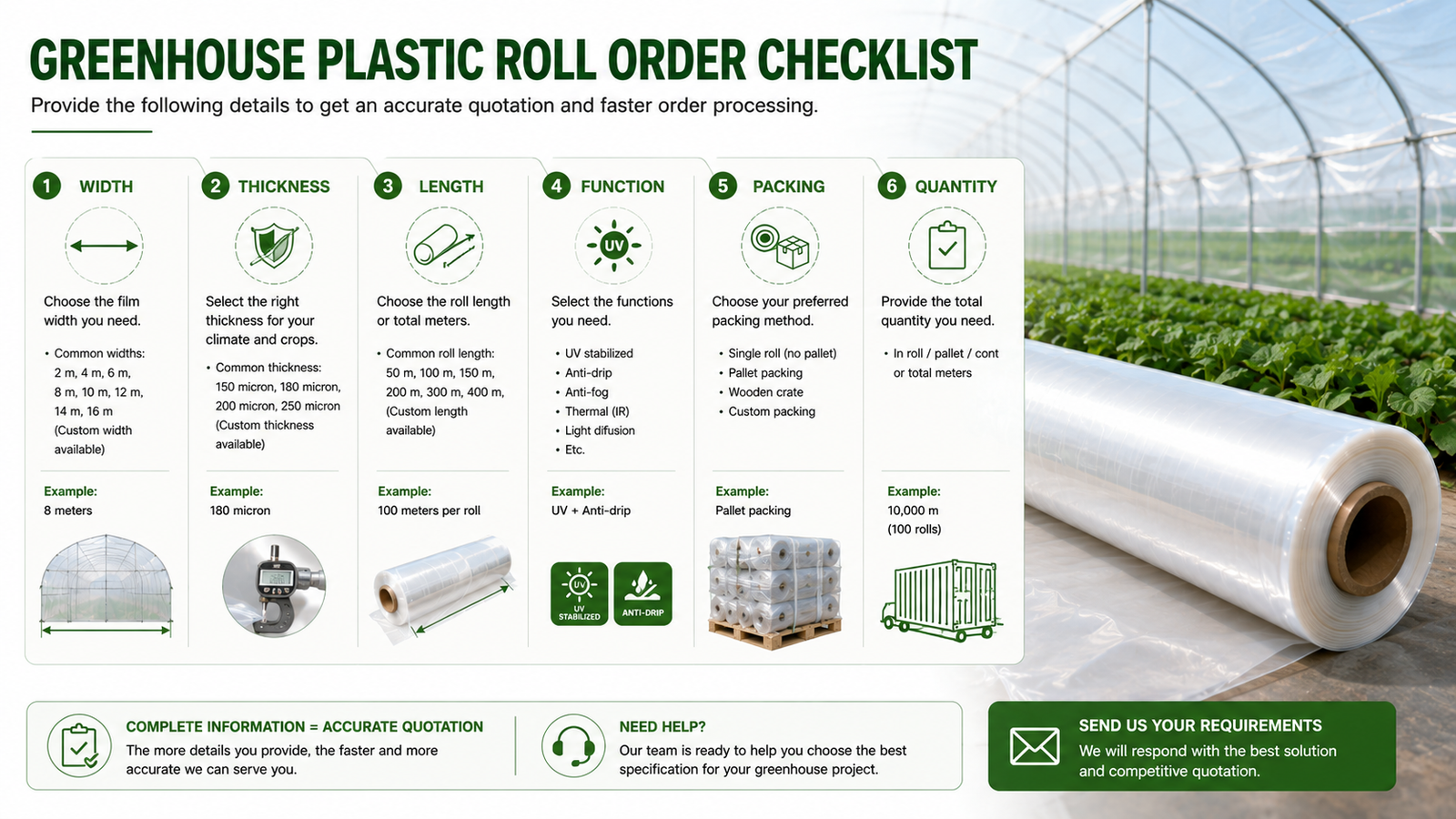

What to Confirm Before Ordering
Before requesting a quotation, prepare the following information. This helps the supplier recommend the correct roll size, material and packing method.
| Information | Example | Why It Matters |
|---|---|---|
| Greenhouse type | Hoop house, tunnel greenhouse, multi-span greenhouse, nursery house | Different structures need different width and fixing allowance. |
| Structure size | Width, length, arch height, side wall height | These dimensions determine film width and roll length. |
| Required thickness | 100, 150, 180, 200 or 250 micron | Thickness affects durability, handling and expected service life. |
| Film function | UV, anti-drip, anti-fog, thermal, anti-dust or custom | Function options should match crop, climate and greenhouse use. |
| Quantity | Number of rolls, total area or container quantity | Quantity affects roll weight, production planning and shipment method. |
| Packing | Roll packing, woven bag, pallet packing or custom export packing | Packing affects storage, loading, unloading and transport protection. |
If your project already has greenhouse dimensions and target thickness, you can send the details through our request a quote page.
Frequently Asked Questions
What is the most common greenhouse plastic roll thickness?
A common starting point for many greenhouse projects is 150 micron, or about 6 mil. It offers a practical balance between strength, cost, flexibility and light transmission. However, the final choice should depend on UV stabilization, climate, greenhouse type and expected service life.
How wide should greenhouse plastic be?
The roll should be wide enough to cover the frame from one fixing side to the other, measured over the roof curve, not only across the ground width. Extra allowance should be added for locking channel, wiggle wire, buried edges, roll-up sides or trimming.

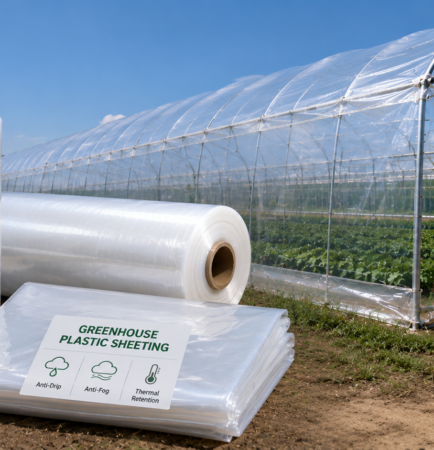

Is greenhouse plastic roll the same as greenhouse plastic sheeting?
The terms are often used together, but not always in the same way. Greenhouse plastic roll usually refers to film supplied in roll form for greenhouse covering. Greenhouse plastic sheeting can refer more broadly to flat plastic sheet or roll material. For greenhouse use, the important point is whether the film is greenhouse-grade and UV stabilized.
Can greenhouse plastic rolls be custom made?
Yes. Greenhouse plastic rolls can often be customized by width, length, thickness, color, function and packing method. Custom options may include UV resistance, anti-drip, anti-fog, thermal retention, anti-dust treatment and export packing.
Is thicker greenhouse plastic always better?
Not always. Thicker film may improve puncture and tear resistance, but thickness alone does not guarantee longer service life. UV stabilizer, raw material, additive system, thickness uniformity, installation quality and frame contact points also affect performance.
What is the difference between 6 mil and 150 micron greenhouse film?
6 mil is approximately 152.4 microns. In practice, 150 micron greenhouse film is often treated as close to 6 mil. Always confirm whether the supplier uses nominal thickness, average thickness and acceptable tolerance.
How much extra greenhouse plastic should I order?
Extra material may be needed for pulling, trimming, fastening, end walls, doors, vents, roll-up sides and repair pieces. The required allowance depends on the greenhouse structure and installation method.
Can I use construction plastic instead of greenhouse plastic?
Ordinary construction plastic may provide temporary coverage, but it usually does not provide the same UV resistance, light transmission, anti-drip performance or outdoor durability as greenhouse-grade film. For commercial crop use, greenhouse-grade polyethylene film is usually the safer choice.
